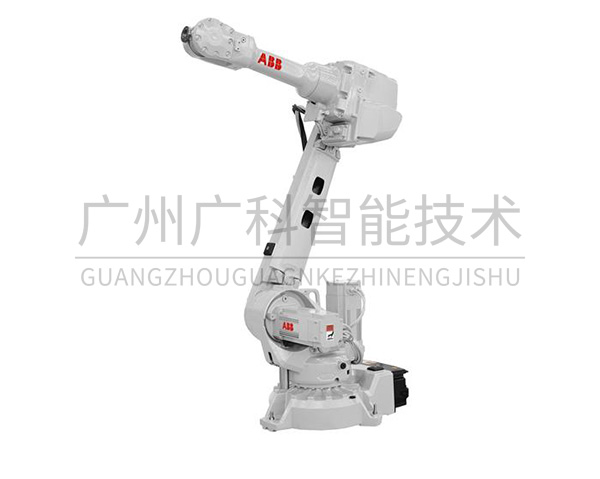

ABB IRB 2600-12 / 1.85 terminal robot series
The second model irb2600 of the "first generation" robot comes out with enhanced innovation function. The machine has compact body, strong load capacity, optimized design, suitable for arc welding, material handling, loading and unloading and other target applications. Three seed models are provided, which can be flexibly installed in floor, wall hanging, bracket, oblique, inverted and other ways.
Product parameters
Axle number: 6
Load: 12kg
Working area: 1850mm
Accuracy: 0.04mm
Protection level: Standard IP67; optional casting expert II
Version: general version, welding version, casting version
Installation mode: landing, hanging upside down, wall hanging, bracket, tilting
Body weight: 284kg
Main applications: arc welding, cutting, loading and unloading, material handling, assembly, gluing and sealing
Energy consumption: 3.4KW
Main applications: arc welding, assembly, material handling, loading and unloading, material removal, cleaning / spraying, gluing and packaging.
Installation method: floor, wall hanging, support, oblique, inverted
ABB Robot irc5 control cabinet
Power input: 200-600v, 50-60Hz
Size: 970 * 725 * 710mm
Weight: 150kg
Protection grade: IP54
Control hardware: PCI bus of multiprocessor system
USB memory interface of large capacity flash disk power failure standby power supply
Teaching device
Weight: 1kg
Support:
Color touch screen, joystick
Emergency stop, support left / right hand switch
Support u disk, hot plug and recovery program
USB memory support
Sign in with time stamp
Support for remote services
Compact body, strong load capacity
