Repair the YASKAWA large LCD glass panel transport robot arm MOTOMAN-ECD2500D-3700, and replace the U-axis reducer and servo motor this time.

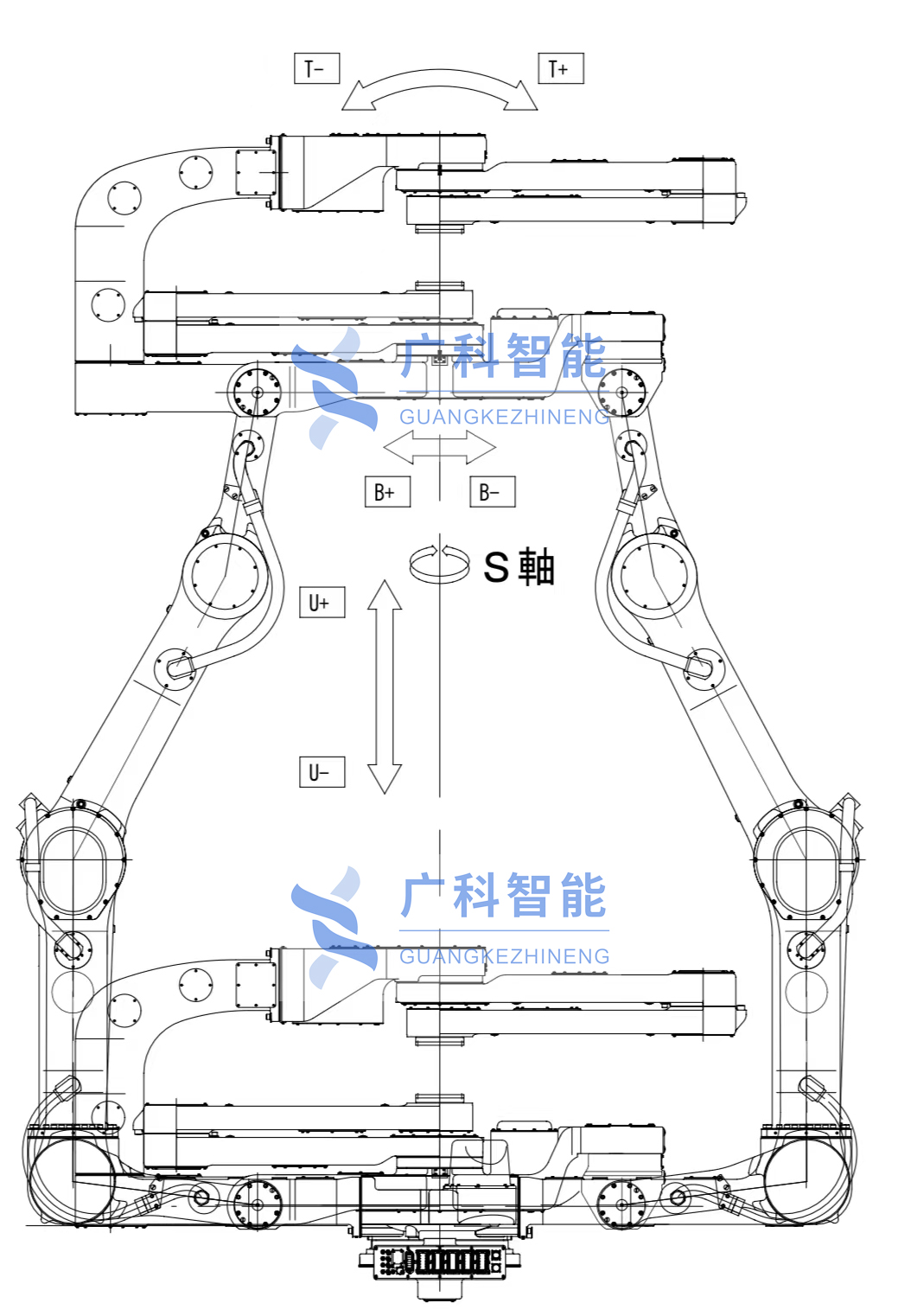

Yaskawa MOTOMAN-ECD2500D-3700 is a seven axis dual arm robot with a dual link support mechanism. It realizes a dual link upper and lower axis mechanism consisting of a longitudinal wavelength stroke (up to 3700 millimeters) and a low tube channel, with high rigidity and flexible movement functions. Its cleanliness is ISO 4, and it can be applied to large tonnage, high generation LCD substrate glass production lines.

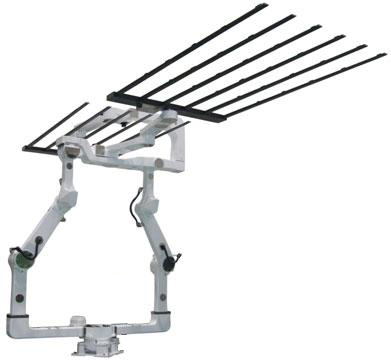

The Yaskawa MOTOMAN-ECD2500D-3700 can carry a weight of 80 kilograms per arm and is a large-scale cleaning robot capable of high-speed, high-precision multi-layer transportation of ultra large LCD glass substrates in the 8th generation size range of 2200 × 2500mm.
